MG100 - M-Gateway

Instructions to install a MG100 M-Gateway

Contents

Minimum Installation Clearances

Mounting

Removing the Cover

Connections

Minimum Installation Clearances

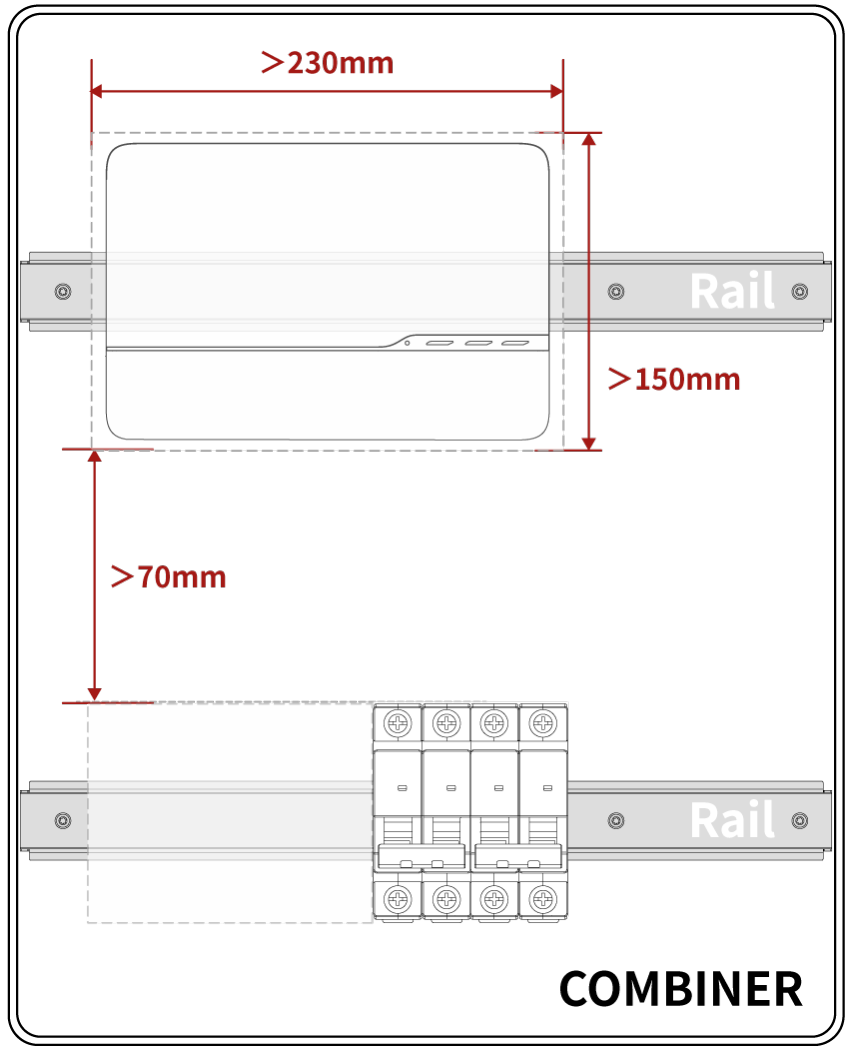

gateway_clearance

  1. Ensure the space meets the M-Gateway installation requirements as shown in the figure above.

  2. Ensure there is at least 70mm of clearance between the bottom of the M-Gateway and other devices.

Mounting

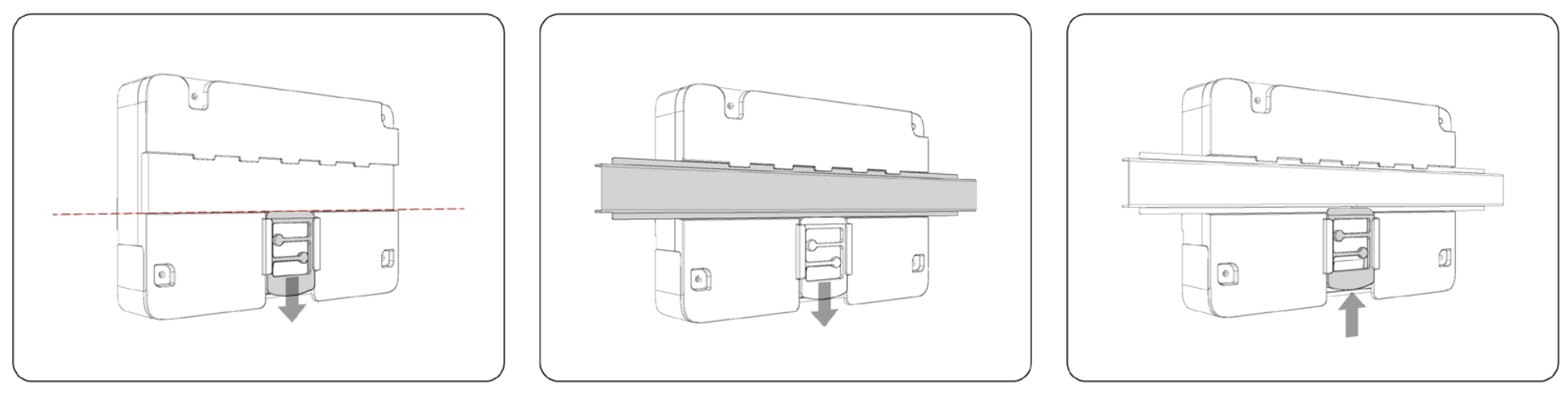

gateway_mounting

  1. Pull down the securing clip on the M-Gateway.

  2. Align the M-Gateway with the 35mm punched DIN rail inside the combiner box.

  3. Release the securing clip.

Removing the Cover

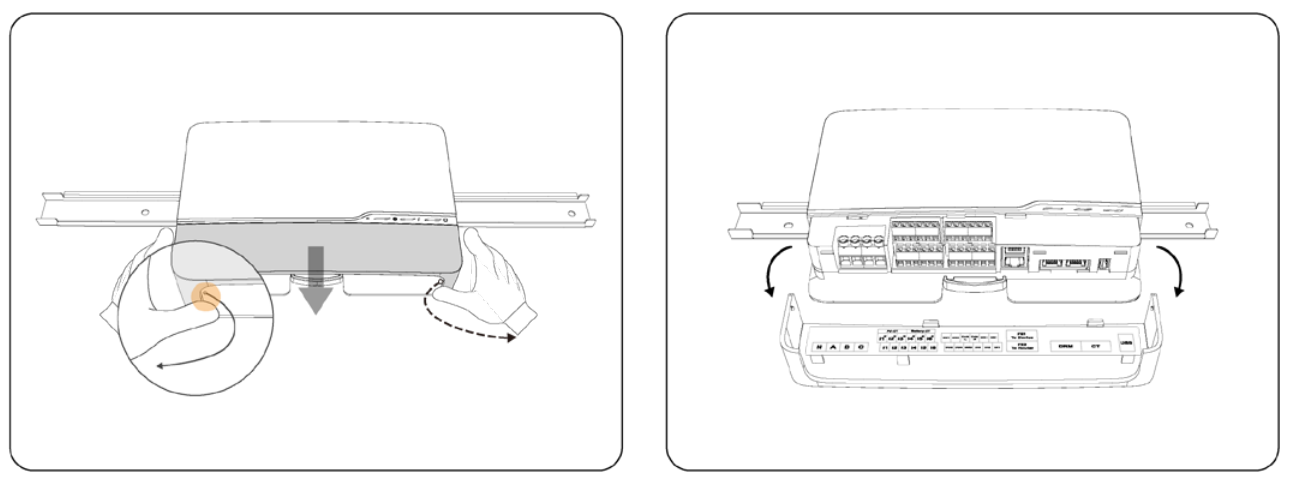

gateway_cover

  1. Press the cover buckles outward simultaneously.

  2. Pull the cover and check the interface diagram inside the gateway cover.

Connections

  • Connection instructions for 1 phase systems can be found here.

  • Connection instructions for 3 phase systems can be found here.



Information in this article was current at the time of publication or last update. Product specifications, software, firmware and procedures may change. Please refer to the latest ATMOCE documentation before proceeding.
