Grid Parameter Settings

Steps to find the grid profile and AC voltage settings using the Atmozen app

AC voltage settings should only be adjusted by installers after obtaining required local permissions.

Instructions

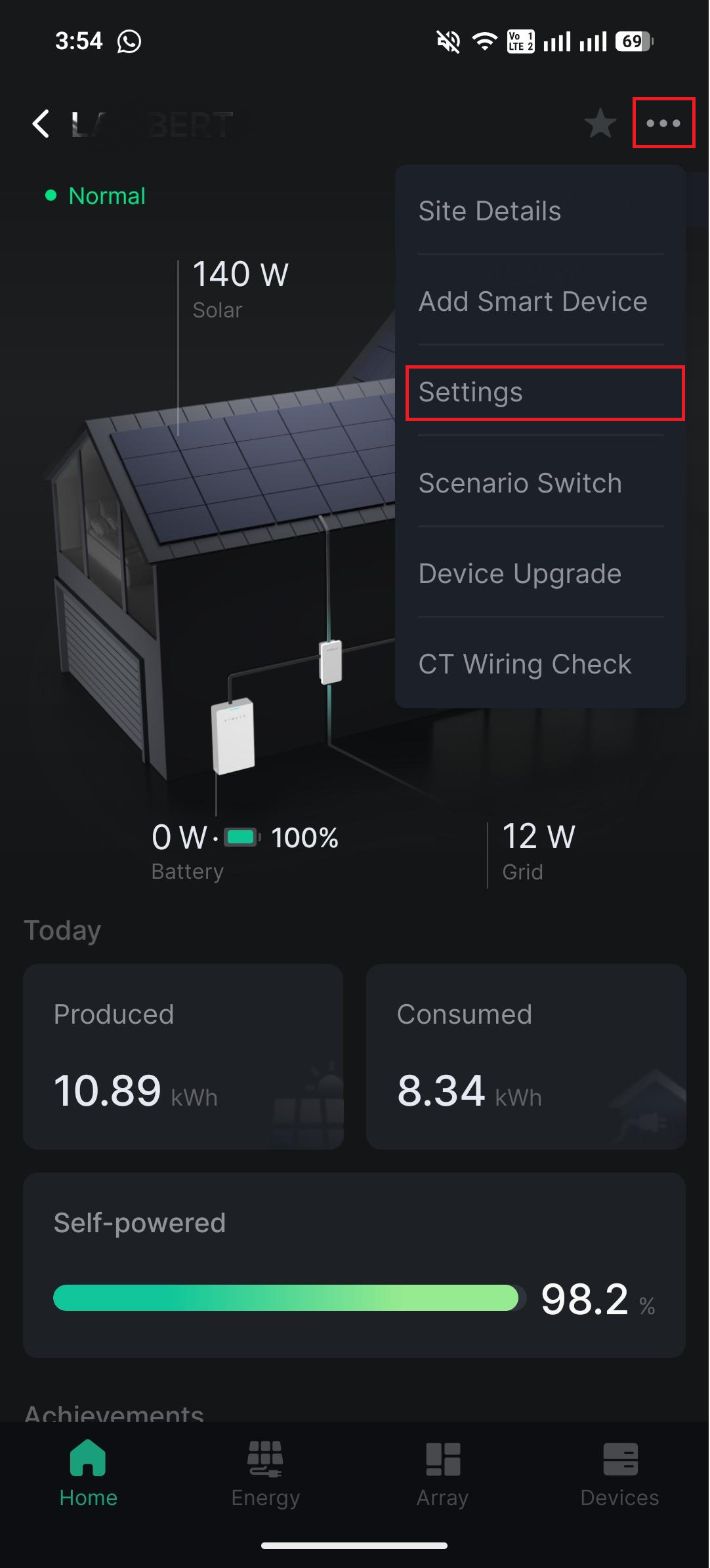

  1. Click on the ... at the top right of the app.
  2. Select Settings.

    APP_settings

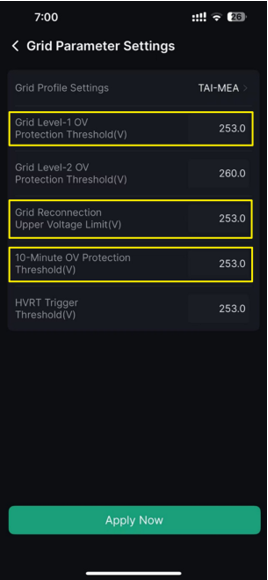

  3. Adjust the Grid Profile or Grid OV Protection Threshold, Grid Reconnection Upper Voltage Limit, and 10-Minute OV Protection settings (where relevant), and click Apply Now.
    1. If more AC voltage settings are required, logging in via the ATMOCE cloud is required.

      image-png-Sep-09-2026-01-58-04-6779-AM



Information in this article was current at the time of publication or last update. Product specifications, software, firmware and procedures may change. Please refer to the latest ATMOCE documentation before proceeding.
