Export Limitation Settings

Steps to configure system export limitation settings on the Atmozen app

For export limitation settings to function, Export Power to Grid must be enabled.

Atmoce allows the option to limit the maximum active power that the ATMOCE system can export to the grid.

For residential applications, it is recommended to enable this function to avoid unwanted export to the grid. Under normal operation, surplus solar energy is used to supply the loads and charge the battery first, and only the remaining excess energy is exported to the grid.

If a 3rd party PV system is installed onsite, the Atmoce system is unable to curtail the PV output.

Example

  • ATMOCE export limit: 3 kW

  • 3rd party PV export: 2 kW

The maximum Atmoce devices can export will be limited to 1 kW.

Instructions

  1. Click on the ... at the top right of the app.
  2. Click Settings.

    APP_settings

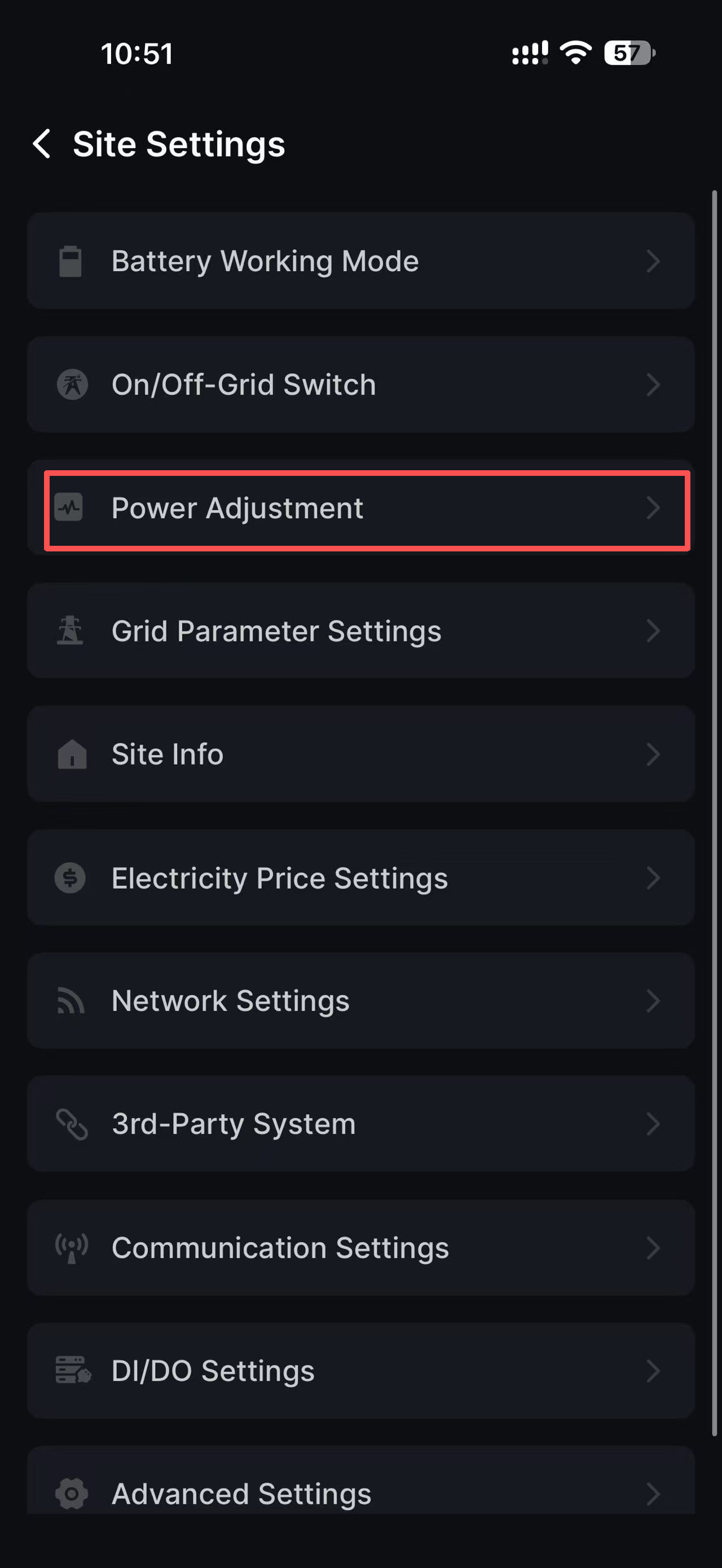

  3. Click Power Adjustment.

    APP_settings_pwoer adjustment

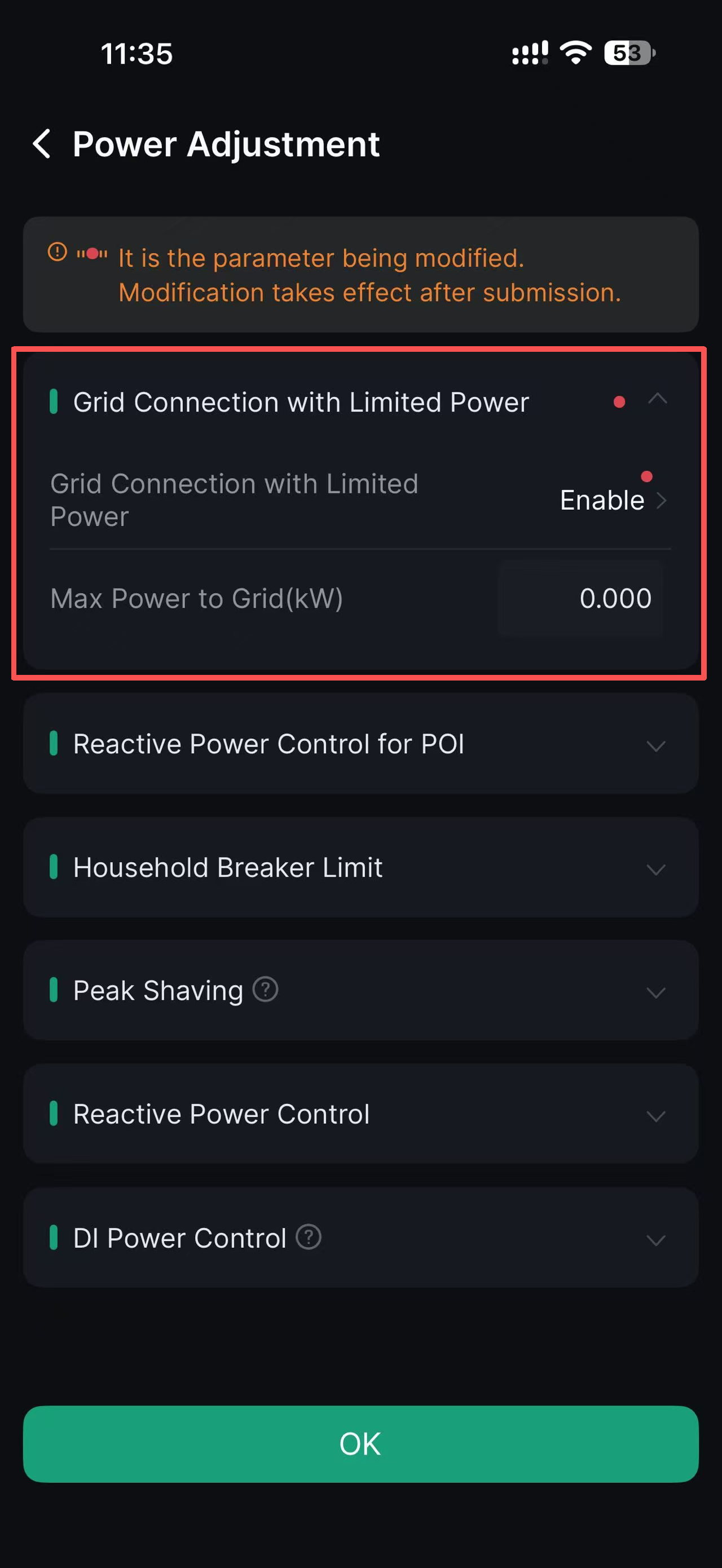

  4. Expand Grid Connection with Limited Power, enable the function, configure the Max Power to Grid to the export limit, and click OK.

    APP_settings_pwoer adjustment_set



Information in this article was current at the time of publication or last update. Product specifications, software, firmware and procedures may change. Please refer to the latest ATMOCE documentation before proceeding.
